MT5 package · two indicators

ECG Pair Pulse + ECG History-Delta for MetaTrader 5

The MetaTrader 5 version combines current multi-timeframe pair context with historical currency strength and changing separation. Information and observation only — never a prediction or trade instruction.

MT5 versionTwo indicators includedManual email deliveryUS$5 one-off

Your MT5 ZIP package is emailed after we verify your payment. Use an email address you can access at checkout and allow time for manual processing.

Back to the MT5 catalogue

MT5 overview

Built for MetaTrader 5.

ECG Pair Pulse presents the current relationship across three chosen timeframes. ECG History-Delta shows how the currencies have developed through time and whether their separation is building, fading or beginning to turn.

This page documents the MT5 version, including its own chart view, controls, video and delivery path.

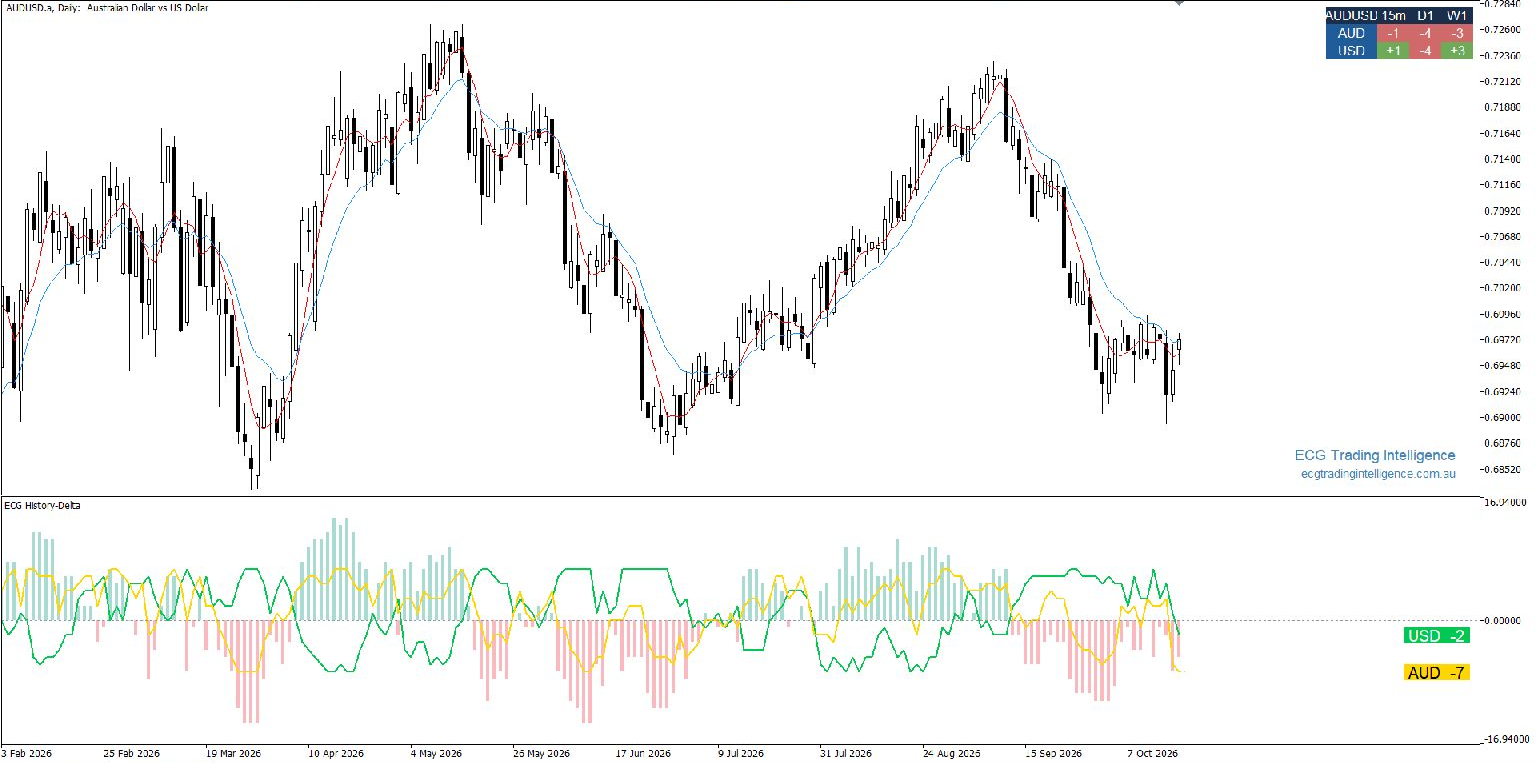

MetaTrader 5 chart showing ECG Pair Pulse and ECG History-Delta together
19 October 2026 MT5 example: AUDUSD.a Daily, with the 15-minute, daily and weekly Pair Pulse matrix above History-Delta.

MT5 how-to video

How to use ECG Pair Pulse + ECG History-Delta on MT5.

The original MT5 walkthrough of Pair Pulse and History-Delta, with updated screenshots of the current displays and customer controls.

MT5 how-to video with on-screen captions. Playback controls and audio are available; the video does not start automatically.

Included indicator one

ECG Pair Pulse

Presents the current relative strength of the base and quote currencies across three chosen timeframes. It provides context for investigation, not an entry marker or trade instruction.

Included indicator two

ECG History-Delta

Shows how the currencies have strengthened or weakened through time and how the distance between them is building, fading or beginning to turn. Display the current pair, add selected currencies or show all eight. Delta can be displayed as a histogram or line.

Shared calculation

Twenty-eight pairs. Seven relationships per currency. A -7 to +7 scale.

The MT5 version uses the same Pair Pulse calculation. Every selected timeframe is calculated independently.

01

Each pair contributes +1, 0 or -1.

The current state of each of the 28 supported pairs is qualified separately on each selected timeframe.

02

Base receives the state. Quote receives its inverse.

EURUSD+1EUR +1USD -1
03

Seven relationships aggregate.

Each currency appears in seven pairs, so its displayed score can range from -7 to +7 on each timeframe.

Live readings can change while the active candle remains open. Completed-candle readings remain fixed. Wider separation is context, not a prediction.

Platform controls

MT5 ECG Pair Pulse controls

Choose the three displayed timeframes, the forex data-source label and the table position.

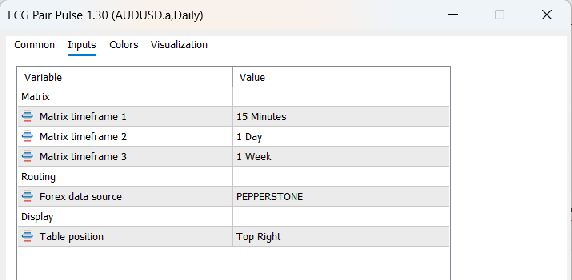

Customer controls available for ECG Pair Pulse on MetaTrader 5
Customer controls: choose the three matrix timeframes, forex data-source label and table position.

Platform controls

MT5 ECG History-Delta controls

Follow the chart timeframe or choose a separate timeframe, then select the visible currency lines, delta style, thickness, transparency and colours.

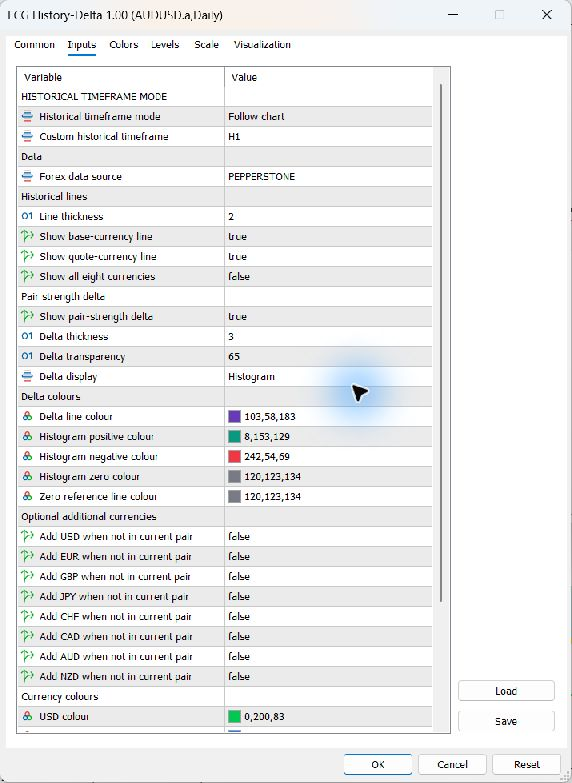

Customer controls available for ECG History-Delta on MetaTrader 5
Customer controls: follow the chart or choose a timeframe, then choose currency lines, delta style, thickness, transparency, colours and optional currencies.

MT5 setup

Start with the supplied settings.

  1. Install both supplied MT5 indicators using the installation information provided by ECG.
  2. Attach ECG Pair Pulse and ECG History-Delta to a supported FX chart.
  3. Begin with the supplied settings, then choose the required matrix and History-Delta timeframes.
  4. Use the active broker feed and describe the displayed state in context.

Data and interpretation

Describe the state, not the next trade.

Platform data

The MT5 version reads the connected broker's feed. The forex data-source setting is a label; it does not switch the account to another provider. Broker data and symbol availability can affect the displayed readings.

Timeframe disagreement

Different columns can show different conditions. The display does not resolve that context into a trade instruction.

Supported symbols

The package is designed for the 28 supported FX pairs formed from USD, EUR, GBP, JPY, CHF, CAD, AUD and NZD.

MT5 purchase and access

US$5 one-off for MetaTrader 5.

After payment is verified, ECG manually emails a ZIP containing both MT5 indicators and installation instructions to the email address supplied at checkout. The package contains both closed-source indicators; source code is not delivered.

One US$5 payment covers both indicators for the selected platform only. This is not a subscription. Delivery remains manual after payment is verified.

  1. Use the MT5 Buy button and enter your delivery email address in Stripe.
  2. ECG checks the successful payment and the selected platform.
  3. Receive the two-indicator ZIP by email, extract it and open START_HERE.txt for installation.

Please allow time for manual processing. Check your spam or junk folder if you are waiting for the package.

Buy MT5 package · US$5Access and support information

Never send a platform password or security code.

Review the Terms of Use and Sale, Refund, Cancellation and Dispute Policy, and Privacy Policy before purchasing.

  • PlatformMetaTrader 5
  • PriceUS$5, one-off
  • IncludedECG Pair Pulse and ECG History-Delta.
  • DeliveryAfter payment is verified, ECG manually emails a ZIP containing both MT5 indicators and installation instructions to the email address supplied at checkout.
  • Source codePurchase does not provide source code.
  • SupportUse support@ecgtradingintelligence.com.au for a verified access issue.
